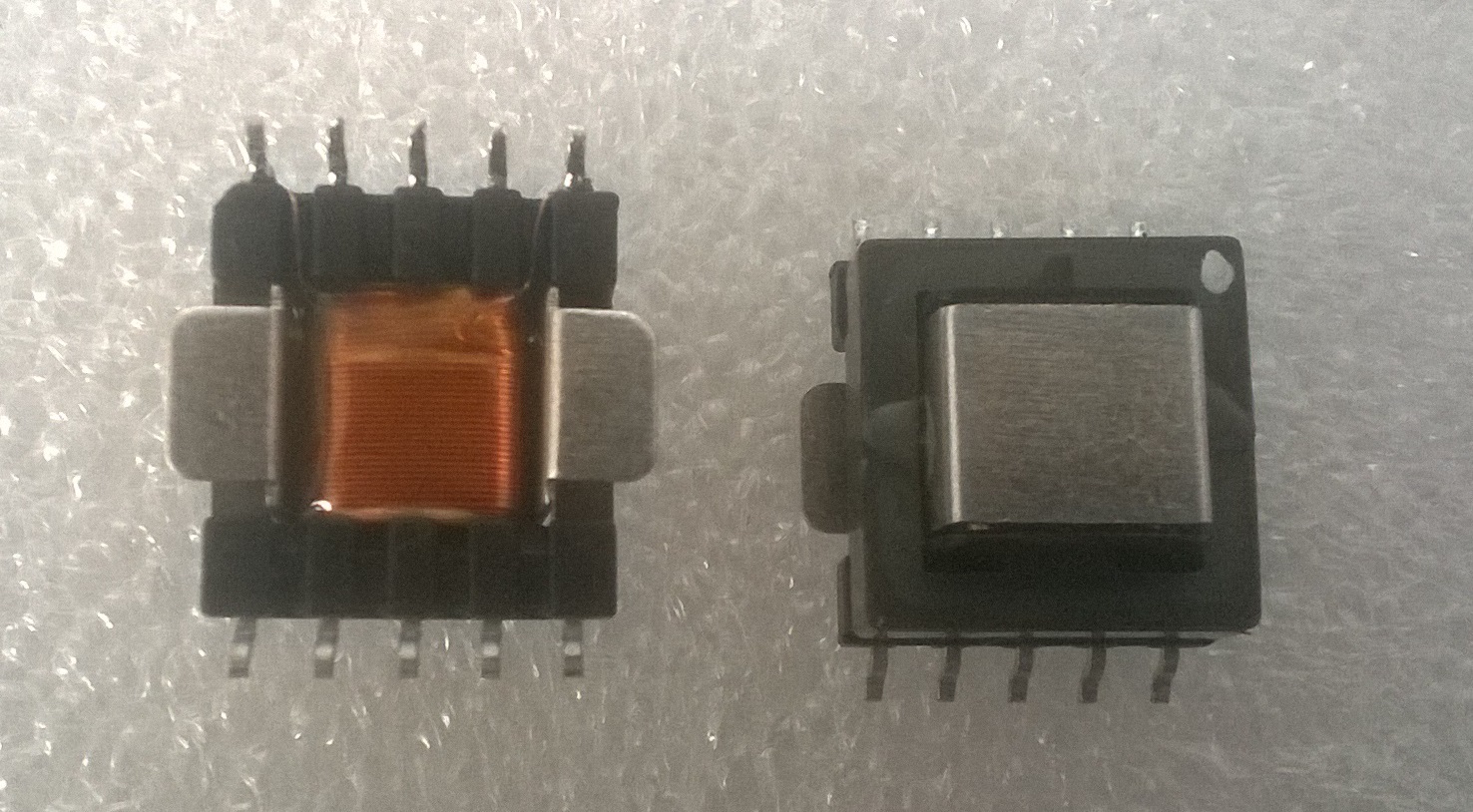

- Working Temperature: -40°C ~ +105°C for industry, -55°C ~ +125°C for military
- Working Frequency: 50 kHz ~ 500 kHz
- Packaging size: 18mmx16mmx10mm max
- Max current: 30A
- Application: switching power supply
| Current in A | Winding Ratio | Inductance of Secondary in µH | Resistance of Primary in mΩ | Resistance of Secondary in mΩ |
|
30
|
1:50 | 1.6 | 0.2 | 300 |
| 1:70 | 3.2 | 0.2 | 620 | |
| 1:100 | 6.4 | 0.2 | 1200 | |
| 1:125 | 25.6 | 0.2 | 3500 |
