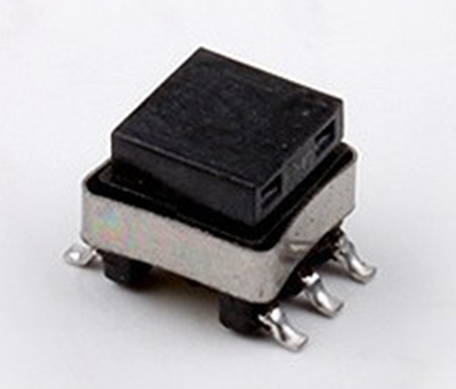

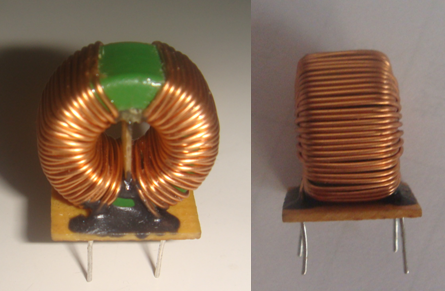

Common Mode Inductor

Switching power supply generally introduces common mode noise in the frequency range from 10 kHz ~ 50 MHz or even higher. Therefore, to effectively reduce these noises, the common mode inductor shall have a high enough impedance. To achieve this specification, the high permeability Manganese-zinc ferrite and the amorphes material are the most appropriate choices. The Common Inductor's impedance Zs consist of the inductance Xs and the resistance Rs.

Typical specification of standard products:

2 15 ≤90 21x14.5x22
10 1 ≤10mΩ 22x17x22
0.2 ≥0.5mH ≤650mΩ 8.2x6.5x6

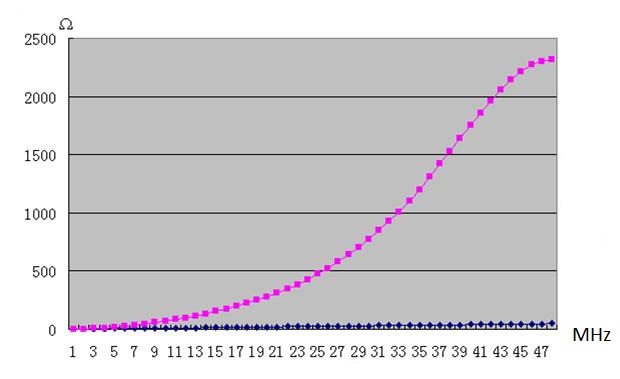

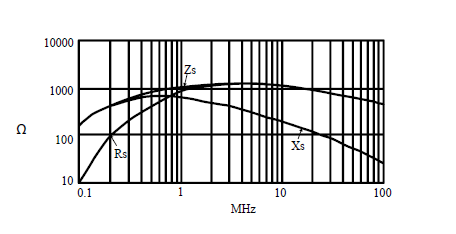

The following diagram descripts the relationship of Zs, Xs, Rs against the frequency.


Crootem offers quick prototyping service, with very low cost. For more information, Contact our sales personals:
