- Working Temperature: -40°C ~ +105°C for industry
- Working Frequency: 50 kHz ~ 2500 kHz
- Power: 5W
- Voltage: 12 V or 15 V
- Packaging size: 23mmx17mmx20mm max
- Application: switching power supply

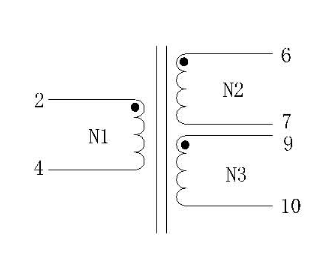

| Parameter | Measured Terminals | Value | Conditions |
| Inductance | L2-4 | ≥450µH | 10 kHz, 1V, 25±10°C |
| Leakage Inductance | Le2-4 | ≤20µH | 10 kHz, 1V, 25±10°C |
| DC Resistance | R2-4 | ≤220mΩ | 1V, 25±10°C |
