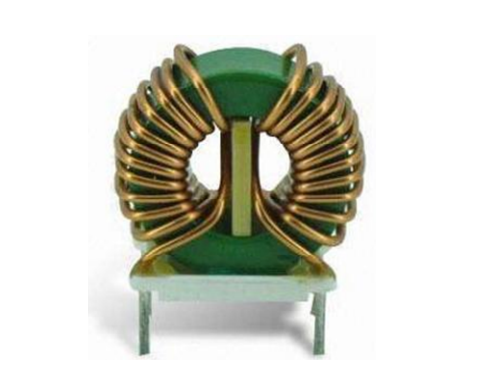

Ring CM Inductor D25 Serie



  • Working Temperature: -40°C ~ +105°C for industry, -55°C ~ +125°C for military
  • Packaging size: 35mmx22mmx28mm max
  • Max current: 2A ~ 12A

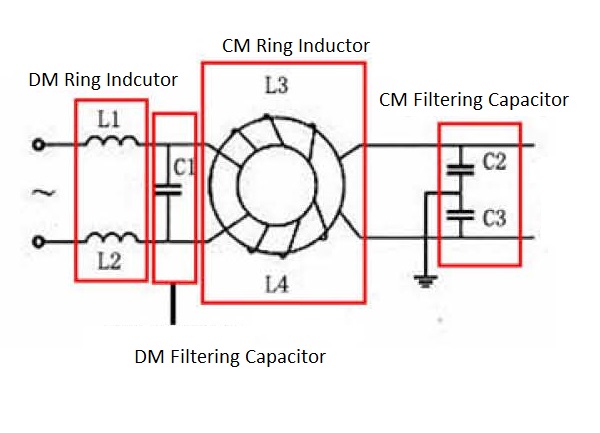

  • Application: EMI filtering
Input Current in A Inductance in mH
@1kHz, 1V, 25±10°C
Resistance in mΩ
@25±10°C
12 1 12
10 1.5 16
8 2 25
6 4 35
5 5 80
2 25 150



Crootem offers quick prototyping service, with very low cost. For more information, Contact our sales personals:
